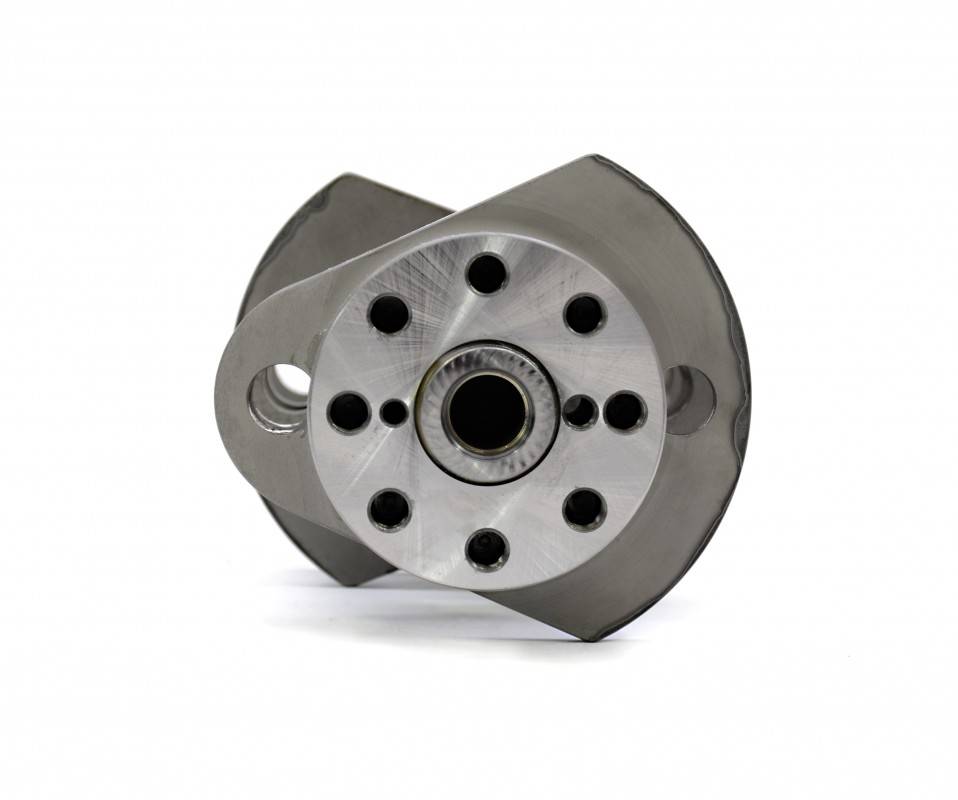

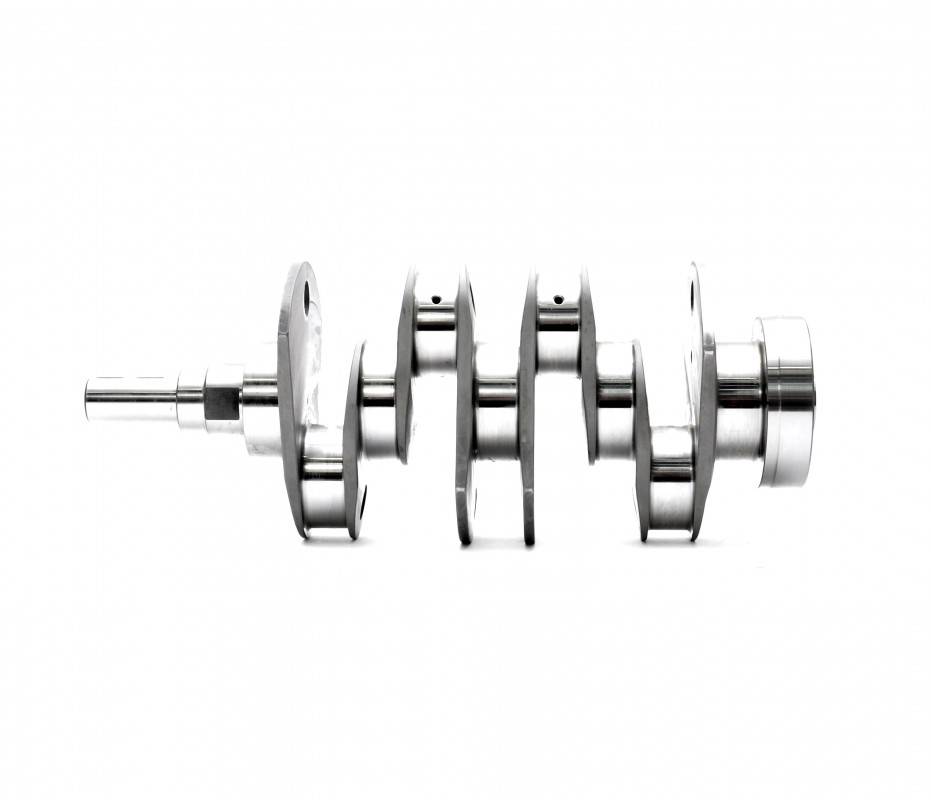

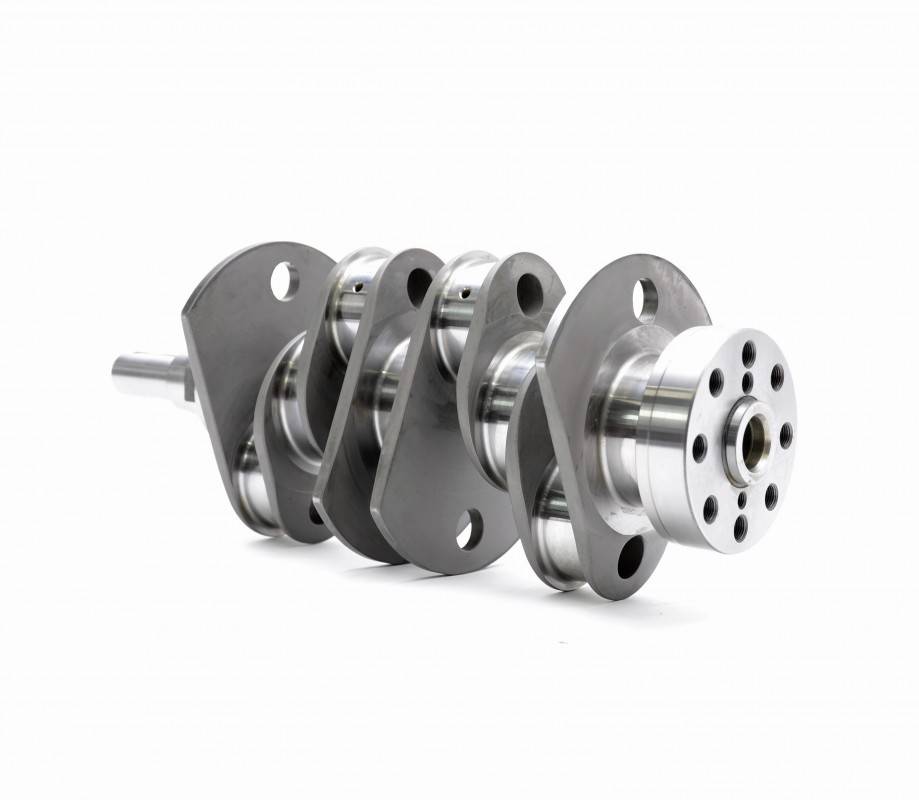

RCM / ARROW Billet Crankshaft

Quality. Innovation. Performance. The hallmarks of Arrow Precision. Only the highest quality raw materials, the latest methods and the knowledge of superbly skilled designers and engineers goes into the making of every Arrow Precision part.

Engineering precision detailed cranks begins with only the highest quality materials and a flexible batch manufacturing process. Arrow Precision works to exacting standards creating a Subaru crankshaft reverse engineered to stunning perfection. This is achieved through continuous inward investment in skilled, experienced people and working practices. Accuracy and efficiency are the hallmarks of a precision crank shaft ensuring you the strongest, lightest and most reliable crank available.

Features

• Significantly lighter and stronger than the OE crankshaft
• Fully machined
• Arrows own grade of low sulphur CORUS steel in EN40B (722M24)
• Balanced between 2 and 15 grams (depending on the number of cylinders)
• 100% crack detection
• Certification material, heat treatments, balancing, critical detail inspection report.

Technical Specifications

• Stroke: 75.00 mm
• Pin Diameter: 51.99
• Pin Width: 21.50
• Main Diameter: 59.99
• Main Width: 18.5. 22.0 & 23.0
• C/Weight: 4
• Bolt: 8

75mm Crankshaft Fitment (RCM133)

• EJ20 Engine Cases (including the early "closed deck block" design)
• EJ25 Engine cases for "de-stroker"
