Platinum Racing Products

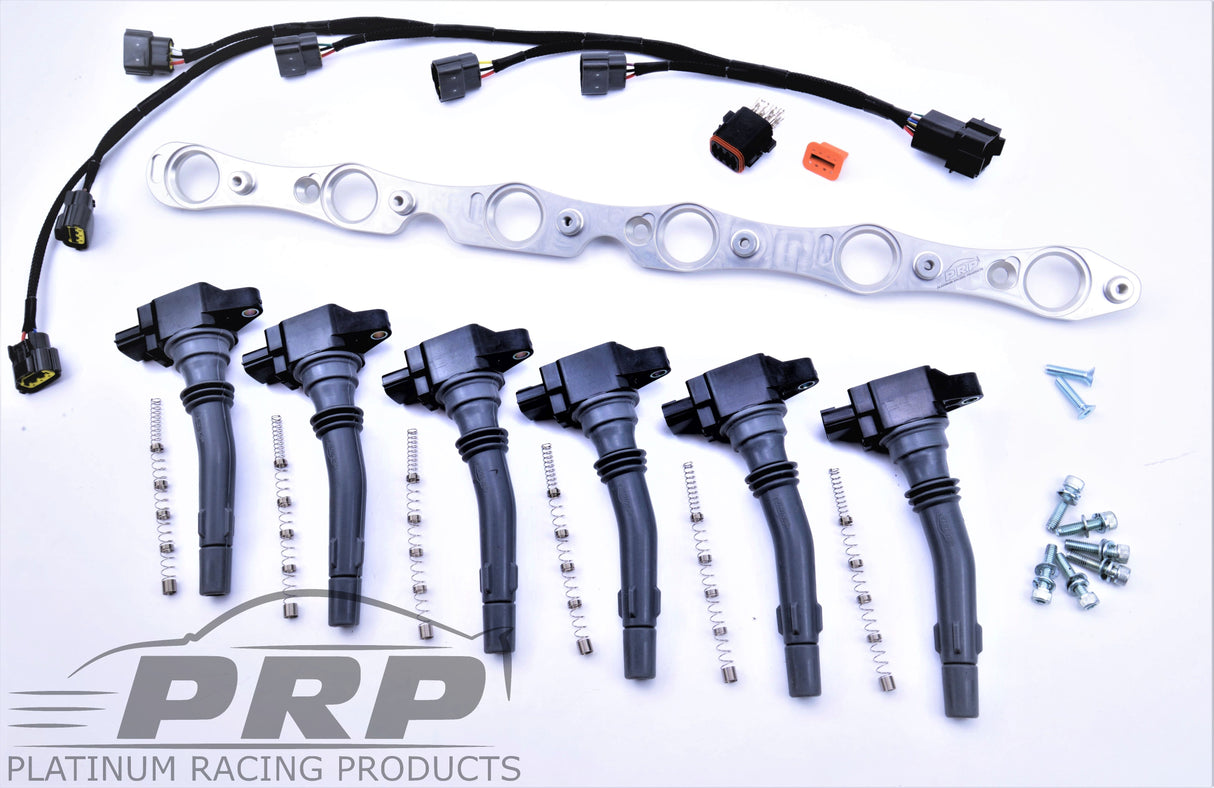

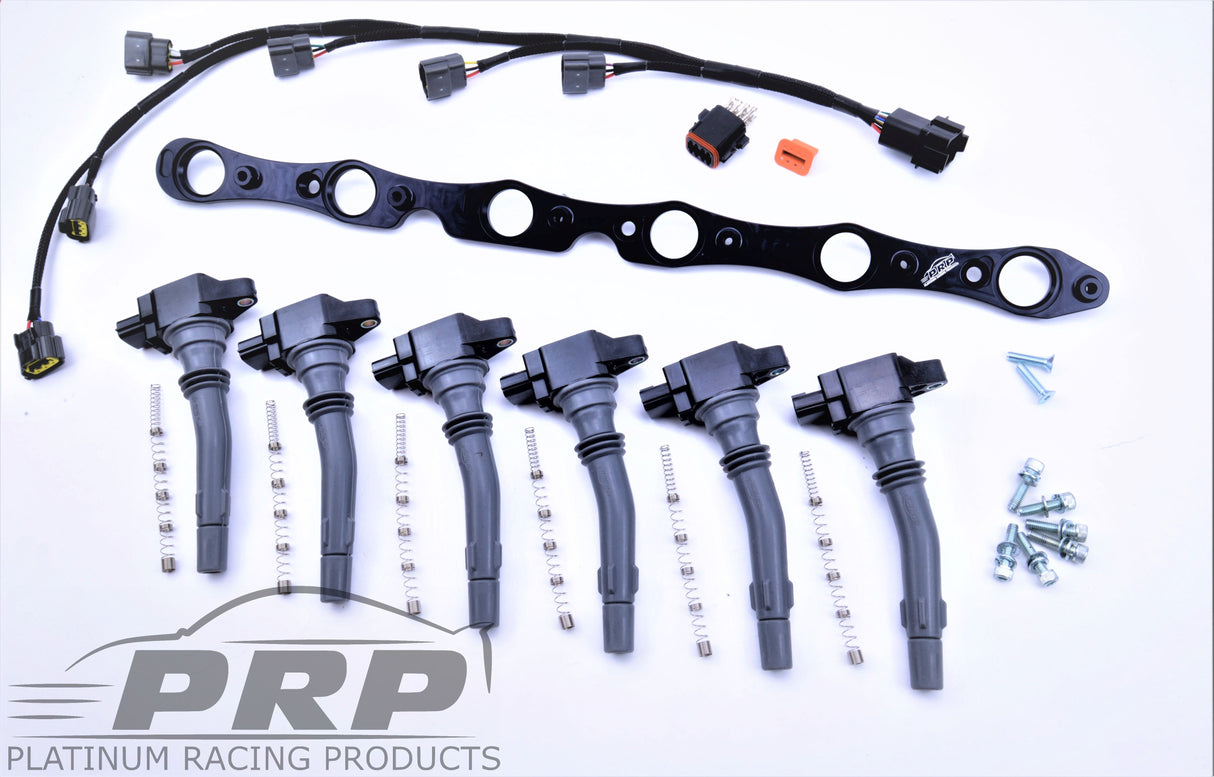

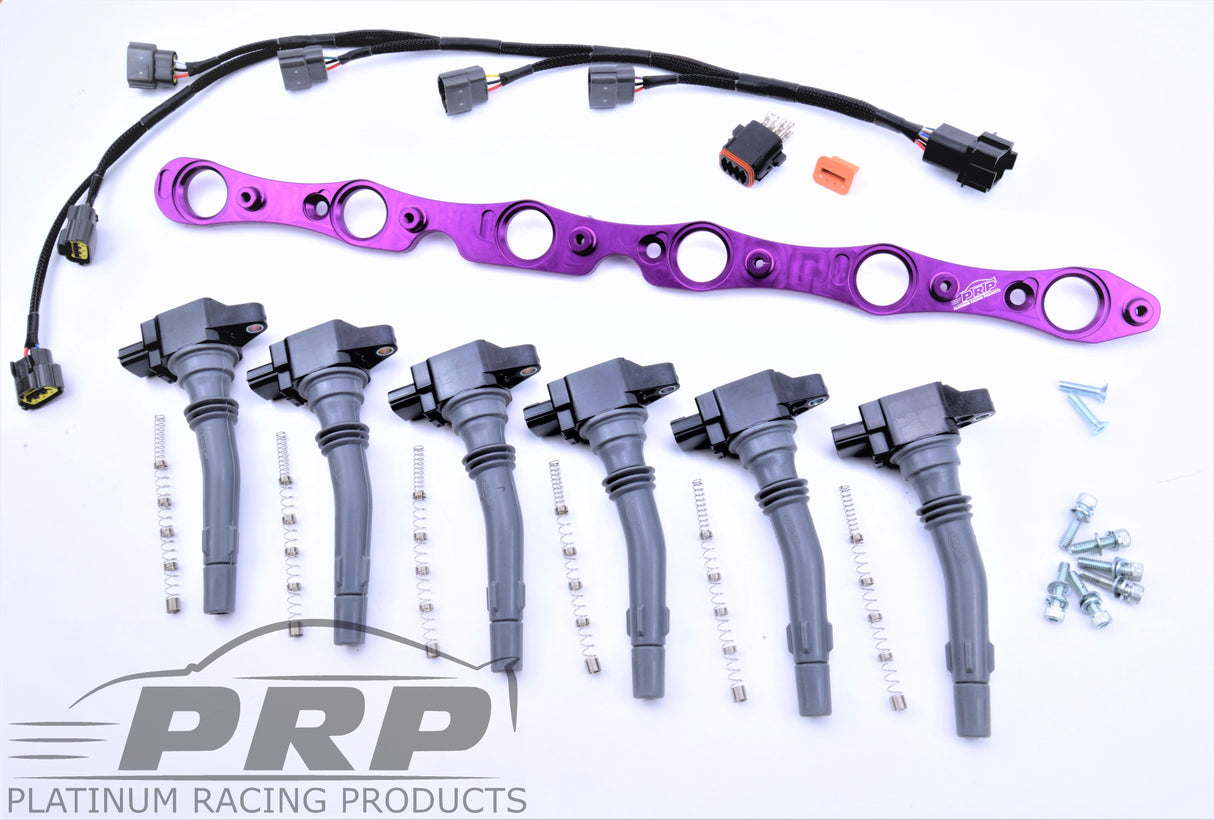

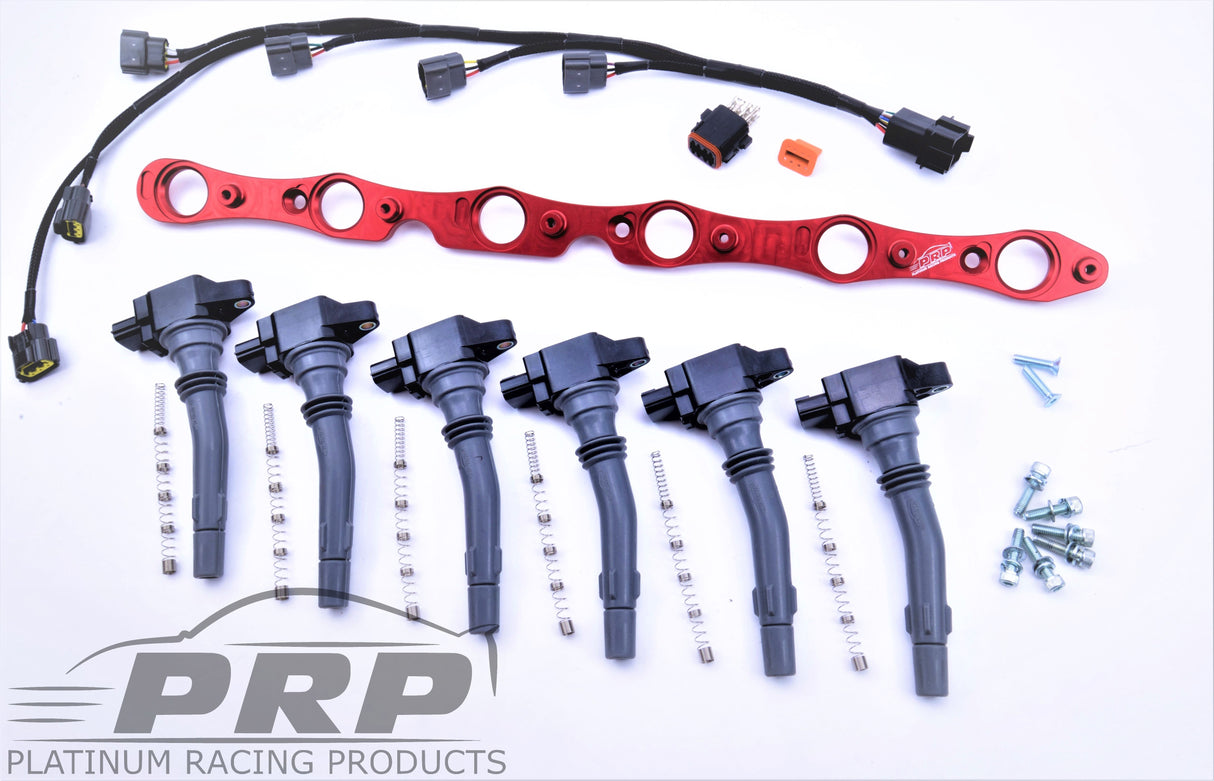

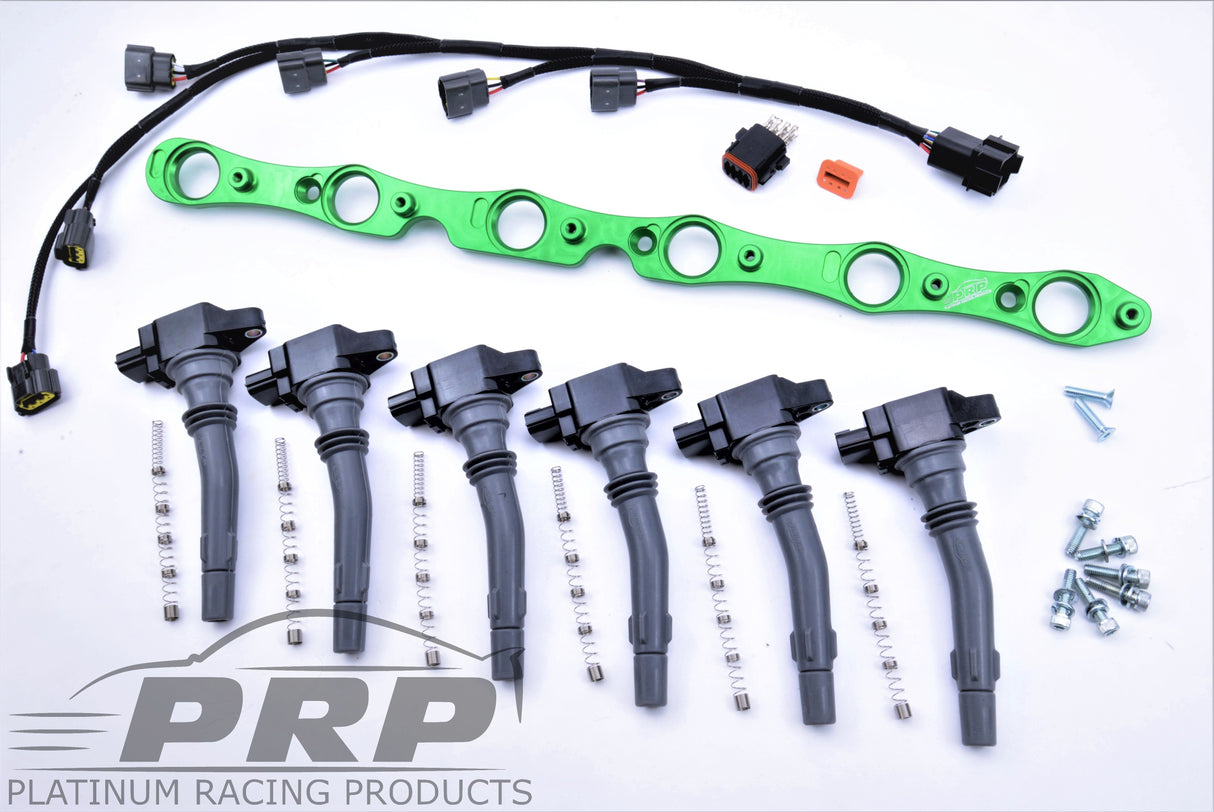

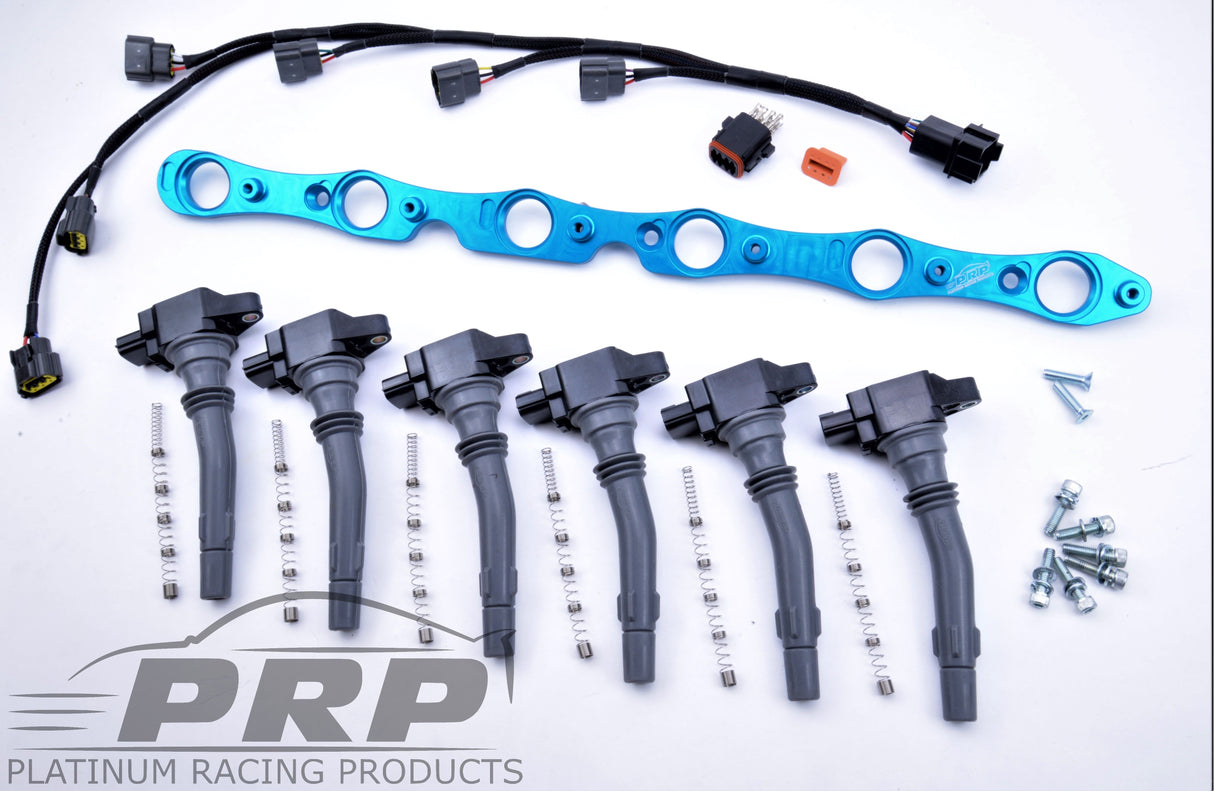

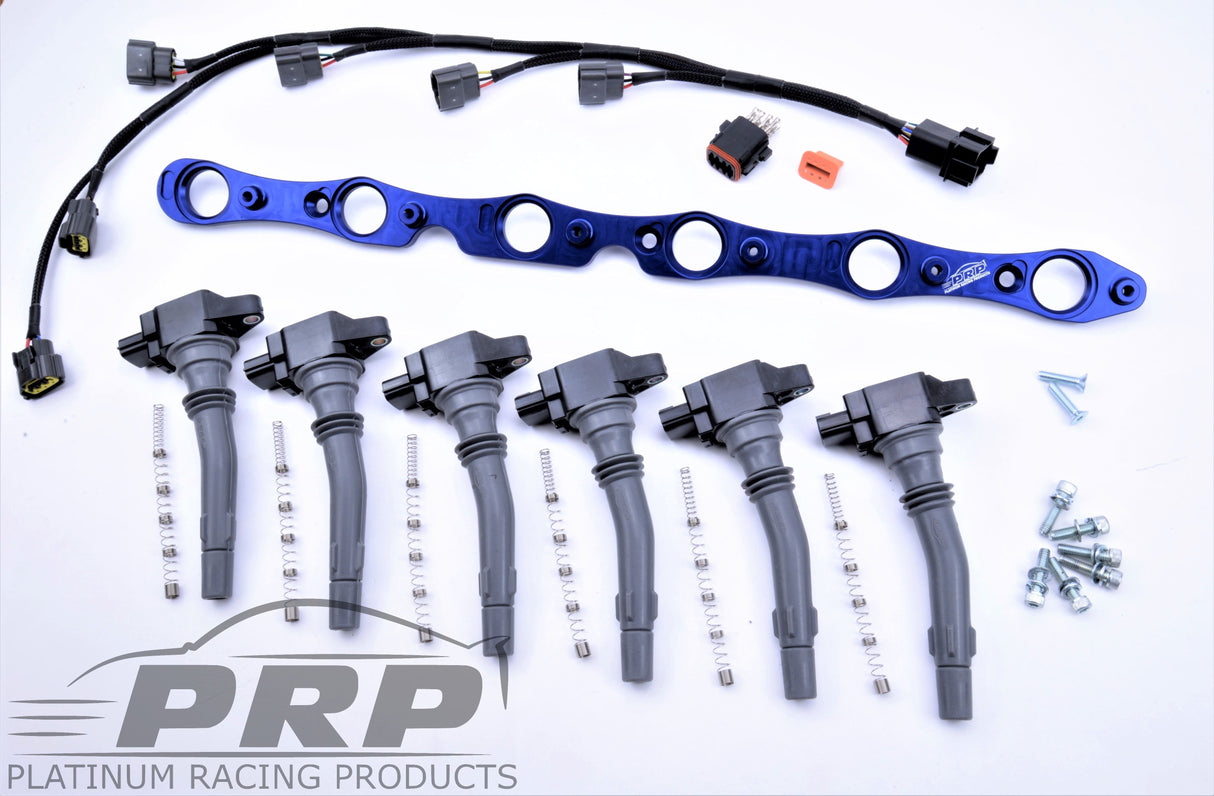

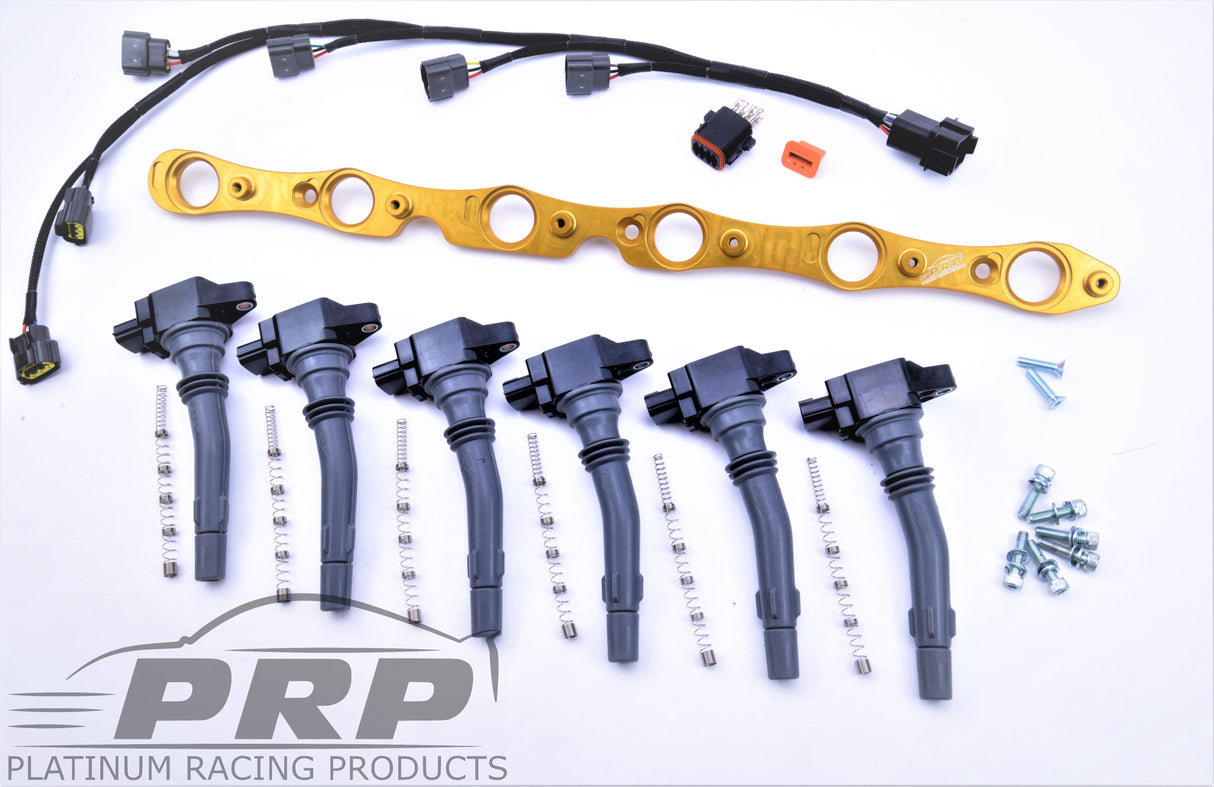

Platinum Racing Products - Ford Barra R35 Coil Kit

$1,261.99 USD
What colour would you like the brackets to be
Kit Options

This coil kit has been specifically designed as a direct drop-in replacement for the OEM Barra coils that simply cannot handle increased power modification.

These coil kits incorporate our off the shelf big-hitting R35 GTR (Smart) Ignition coils that have been proven to make north of 2600hp and void the requirement for the genuine inbuilt ECU ignitor system. (Note this kit will only fit the FG rocker cover, the FG cover does fit the BA-BF)

IMPORTANT NOTE:

As these coils have different windings to the factory coils, your ECU will require the correct dwell time to be set to fire at their optimum performance rate. On flashed later model OEM computers (FG onwards), the current draw on the internal MOSFETs are monitored for coil failures. This calibration will also need to altered as the current draw on the MOSFETs are significantly less load and may trigger a false misfire error due to the current load being focused on the R35 smart coil instead.

Features:

  •  Billet Alloy bracket is engineered to fit all ignition coils in a manor that allows easy access to all the coil plugs in a non-invasive manor.

  •  Oem fitting custom injection moulded silicone stalk perfectly moulded to seal the factory rocker cover spark plug well.

  •  choice of 2 Wiring looms manufactured with new OEM plugs, braid covered, dual heat shrunk joinery, one is standalone ECU system, the other included Internal OEM or Haltech plugin igniter delete patch harness.

  •  Genuine OEM coils are rated to 2000 hp and come with a 1-year warranty.

  •  Bolt kit included caters for the 6 ignition coils and billet bracket to head.
